APC UPS Network Management Card 3 w/ Temp Sensor
Description

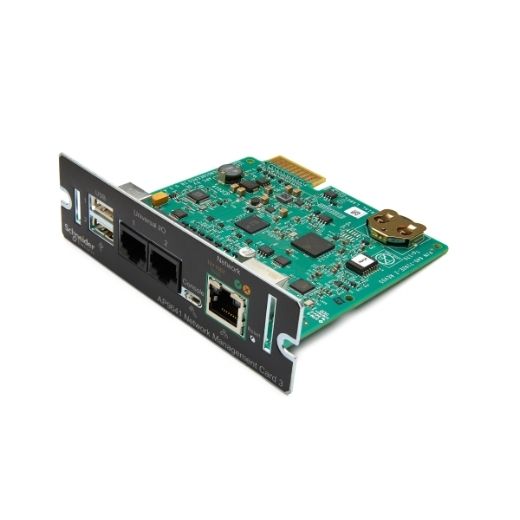

The AP9641 Network Management Card:
• Provides UPS control and self-test scheduling features.
• Provides data and event logs.
• Enables you to set up notifications through event logging, e-mail, Syslog and
SNMP traps.
• Provides support for PowerChute® Network Shutdown.
• Supports using a Dynamic Host Configuration Protocol (DHCP) or
BOOTstrap Protocol (BOOTP) server to provide the network (TCP/IP) values
of the NMC.
• Provides the ability to export a user configuration (.ini) file from a configured
card to one or more unconfigured cards without converting the file to a binary
file.
• Provides a selection of security protocols for authentication and encryption.
• Communicates with StruxureWare Data Center Expert, StruxureWare
Operations, or EcoStruxure™ IT.
• Supports Modbus TCP/IP
• Provides two USB ports, which support upgrading the UPS firmware from a
USB flash drive, and wi-fi support with the optional APC USB Wi-Fi Device
(AP9834).
• Supports two universal input/output ports, to which you can connect:
– Temperature (AP9335T) or temperature/humidity sensors
(AP9335TH)
– Relay input/output connectors that support two input contacts and one
output relay (using the AP9810 Dry Contact I/O Accessory, which is an
optional add-on)
• Supports Modbus RTU 2-wire RS-485 via Universal I/O port 2, in addition to
Modbus TCP/IP. For information on how to configure Modbus RTU, refer to
the Modbus Documentation Addendum.
Details
-
Brand:APC
